JZP-SC-SC1 Series
Enhancing Imaging Quality of Optical Systems: The Indispensable Role of JZP-sc-sc1 Vibration Isolators
In high-end imaging systems—such as lithography machines, semiconductor inspection equipment, astronomical telescopes, or confocal microscopes—pursuing ultimate resolution is an eternal goal. However, environmental vibration stands as one of the most hidden obstacles on this path: it causes image blurring, reduced signal-to-noise ratio, and positioning errors. The JZP-sc-sc1 series friction damping vibration isolators from Xi'an Hoan Microwave play an indispensable "stable cornerstone" role in these optical applications that strive for perfection.
Optical systems are particularly sensitive to low-frequency vibrations, which happen to be the main frequency band of vibrations from buildings and the ground. Leveraging its optimized natural frequency and efficient friction damping, the JZP-sc-sc1 delivers excellent vibration attenuation within this critical frequency range. It decouples the optical platform or equipment body from the vibrating "ground," creating a relatively static internal space.
More importantly, friction damping can effectively suppress relative motion inside the system. For instance, in a microscope, even tiny relative vibrations between the objective lenses and sample stages will be amplified in the image. Installing the entire system or key components on the JZP-sc-sc1 vibration isolation system ensures rigid stability of the entire optical path. This guarantees that every pixel accurately reflects the true information of the sample, rather than environmental noise.
For researchers and engineers committed to pushing the boundaries of imaging limits, the JZP-sc-sc1 series from Xi'an Hoan Microwave provides a fundamental yet critical solution. Though it is not an optical component, it contributes significantly to improving the final imaging quality—truly an "unsung hero" in optical engineering systems.

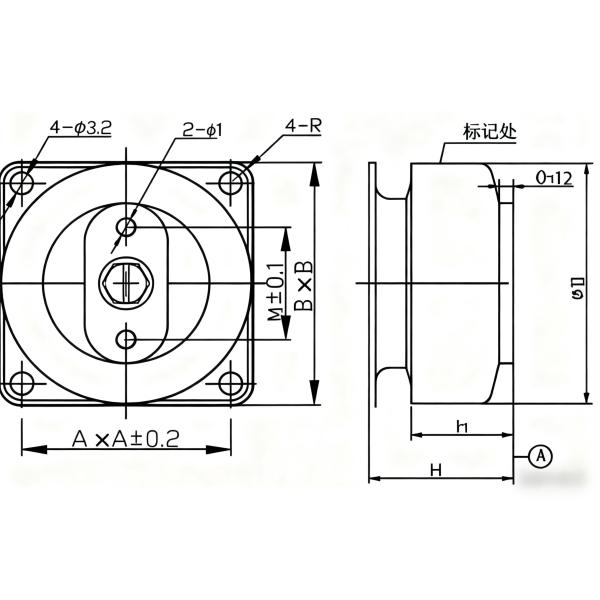

Dimension Parameter Table
| Model | D (mm) | H±1 (mm) | h (mm) | A±0.2 (mm) | B (mm) | d | d2 | R | b (mm) |
| JZP-SC-SC1 | 60 | 36 | 24.5 | 50 | 60 | M5 | ∅5.5 | 5 | 28 |
Technocal Parameter Table
| Model | Nominal Load (KG) | Static Displacement (mm) | Working Temperature (℃) | Resonance Frequency (Hz) | Impact Test | Limited Period |
| JMZ-3.2-SC-SC1 | 3.2 | ≤0.3 | -45～+65 | 41.5±5 | 100g 12 times | 8 |
| JMZ-4.2-SC-SC1 | 4.2 |
| JMZ-5.2-SC-SC1 | 5.2 |
| JMZ-6.0-SC-SC1 | 6.0 |
| JMZ-7.0-SC-SC1 | 7.0 |
| JZP-7.5-SC-SC1 | 7.5 |
| JZP-9.0-SC-SC1 | 9.0 |
| JZP-10.5-SC-SC1 | 10.5 |
| JZP-13.5-SC-SC1 | 13.5 |
| JZP-15-SC-SC1 | 15 |
