JGX-0648a-79a Wire Rope Vibration Isolators for Complex Working Conditions with Chemical Exposure

  • 1
  • 2
  • 3

Brand Name : Hoan

Model Number : JGX-0648A-79A

Certification : ISO9001:2015

Place of Origin : China

MOQ : 4 piences

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 4，pience，7

Delivery Time : 7

Wire Rope Diameter : 3mm

Strand Construction : 7x19

Function : Damping

Temperature Range : -40℃ to 80℃

Mounting Type : Loop to Loop

Installation Type : Vertical

Accessories : Net

Vibration Isolation Efficiency : Up to 90%

Diameter : 1 inch

Isolator Type : Vibration

Condition : New

Type : SHOCK ABSORBER

Shape : Cylindrical

Shock Resistance : 20g/11ms

Shock Absorption : Yes

Contact Now

JGX-0648A Series

The JGX-0648 series of wire rope vibration isolators developed by Xi'an Hoan Microwave Co., Ltd. are professional-grade products in the field of vibration isolation, boasting excellent comprehensive performance. Take the JGX-0648D-79A model as an example. This isolator is meticulously wound with a 6.4mm-diameter stainless steel wire rope and firmly assembled with high-strength upper and lower clamping plates. Through testing, it demonstrates remarkable load-bearing capacity, with a maximum static load of up to 79kg.


In terms of environmental adaptability, this series of vibration isolators can maintain stable operation in extreme high and low temperature environments, offering a wide temperature tolerance range. Thanks to high-quality stainless steel materials, they exhibit outstanding corrosion resistance even under complex working conditions with chemical exposure. Whether applied to airborne equipment in turbulent high-altitude environments, vehicle-mounted devices on bumpy roads, or shipborne equipment in humid marine conditions, the JGX-0648 series wire rope vibration isolators provide efficient vibration isolation and buffering solutions for electronic devices, mechanical equipment, and instruments, effectively ensuring stable operation and optimal performance of the equipment.


JGX-0648a-79a Wire Rope Vibration Isolators for Complex Working Conditions with Chemical Exposure


Mounting Options

JGX-0648a-79a Wire Rope Vibration Isolators for Complex Working Conditions with Chemical Exposure



SIZE PARAMETER:

Model “H”±3.30 “W” Unit weight Mounting options Thru hole(mm) Thread(mm) Csink(℃)
JGX-0648D-79A 48 56 0.456 A,B,C,D,E,S ∅6.9±0.13 M6×1.0 90
JGX-0648D-68A 54 64 0.492
JGX-0648D-56A 59 71 0.516
JGX-0648D-45A 64 80 0.564
JGX-0648D-39A 64 89 0.832
JGX-0648D-36A 67 95 0.864
JGX-0648D-33A 67 100 0.684
JGX-0648D-30A 83 108 0.708


Technical Data Sheet:

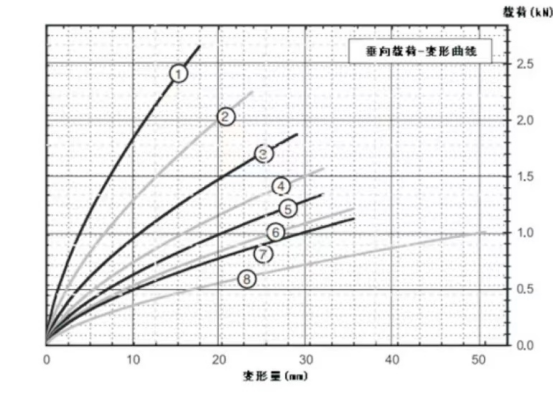

Vertical load

JGX-0648a-79a Wire Rope Vibration Isolators for Complex Working Conditions with Chemical Exposure
Curve number Model Maximum static load(N) Maximum deformation(mm)

Vibration stiffness

(KN/m)

 Impact stiffness(KN/m)
1 JGX-0648D-79A 79 17.8 382 182
2 JGX-0648D-68A 68 23.9 266 116
3 JGX-0648D-56A 56 29.0 196 79
4 JGX-0648D-45A 45 32.0 151 60
5 JGX-0648D-39A 39 32.0 127 51
6 JGX-0648D-36A 36 35.6 109 42
7 JGX-0648D-33A 33 35.6 100 39
8 JGX-0648D-30A 30 50.8 74 25


45 ° directional load:

JGX-0648a-79a Wire Rope Vibration Isolators for Complex Working Conditions with Chemical Exposure


Curve number Model Maximum static load(N) Maximum deformation(mm) Vibration stiffness(KN/m) Impact stiffness(KN/m)
1 JGX-0648D-79A 56.7 25.9 215 89
2 JGX-0648D-68A 47.7 34.0 151 58
3 JGX-0648D-56A 39.8 39.6 109 40
4 JGX-0648D-45A 32.8 45.7 86 30
5 JGX-0648D-39A 27.9 45.7 72 25
6 JGX-0648D-36A 25.3 50.8 61 21
7 JGX-0648D-33A 23.4 50.8 56 19
8 JGX-0648D-30A 21.3 71.6 41 12


Lateral load:

JGX-0648a-79a Wire Rope Vibration Isolators for Complex Working Conditions with Chemical Exposure


Curve number Model Maximum static load(N) Maximum static load(N) Vibration stiffness(KN/m) Impact stiffness(KN/m)
1 JGX-0648D-79A 43.2 18.8 110 110
2 JGX-0648D-68A 36.3 24.9 72 72
3 JGX-0648D-56A 31.7 30.0 49 49
4 JGX-0648D-45A 25.0 34.0 37 37
5 JGX-0648D-39A 22.7 34.0 32 32
6 JGX-0648D-36A 20.4 38.1 25 25
7 JGX-0648D-33A 18.2 38.1 23 23
8 JGX-0648D-30A 15.9 52.8 16 16

* The material of the mounting splint *
Stainless Steel or Aluminum can be selected
* Surface treatment options for aluminum alloy plywood *
* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.


Product Tags:

Chemical Exposure Wire Rope Vibration Isolators



JGX-0648a-79a Wire Rope Vibration Isolators


Quality JGX-0648a-79a Wire Rope Vibration Isolators for Complex Working Conditions with Chemical Exposure for sale

JGX-0648a-79a Wire Rope Vibration Isolators for Complex Working Conditions with Chemical Exposure Images
